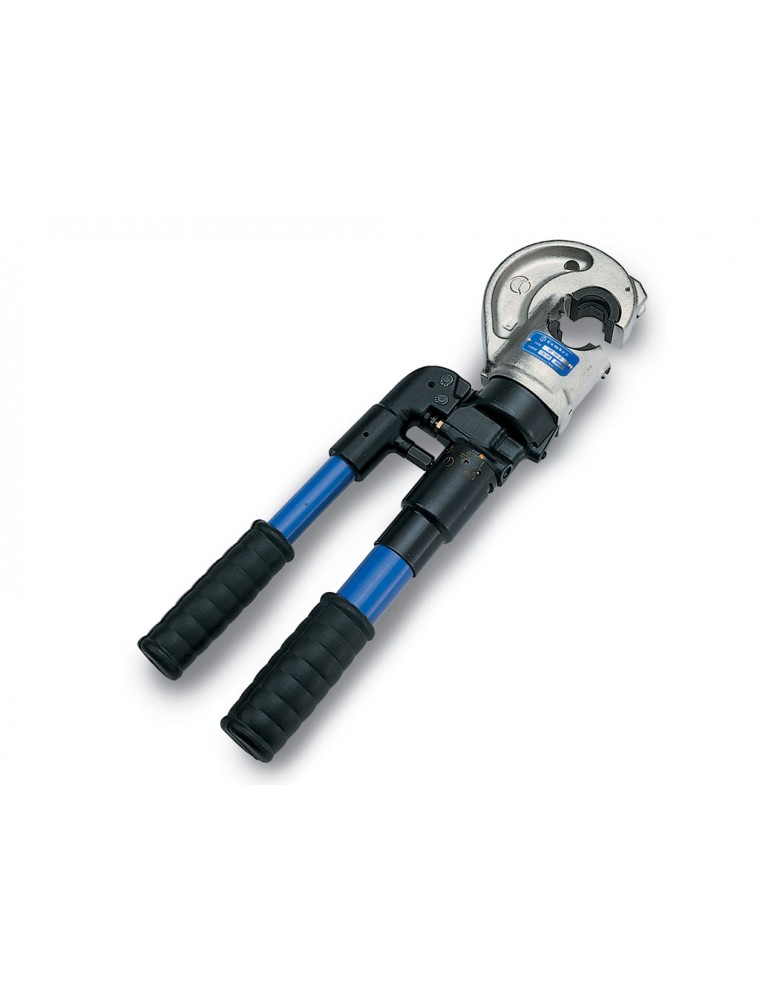

This self contained, robust and sturdy tool, will accept all semi-circular slotted dies, common to most 12 tons tools (U dies). The tool features a double speed action: a fast advancing speed for rapid approach of the dies to the connector and a slower more powerful speed for crimping. For ease of operation and comfort of the operator the tool head can be fully rotated through 180 degrees. The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and the pressure release system can easily be operated at any stage of compression.
MAIN APPLICATIONS - max section mm2 | ||||
L.V. lugs and splices | Insulated terminals | "C" sleeve Connectors | H.V. lugs | H.V. Splices |
400 | 240 | 185 | 400 | 400* |
