FIM- fastMARK Insert Markers
FIM markers are the optimum solution for efficient, cost effective wire marking. The markers are quickly and easily printed using thermal transfer printing and the marking provides excellent durability. The FIM markers are applied into clear carriers in either PVC or Zerex “0-hal” material, ready for final marking on the wire, without the need of a tool.
Easy pick-ability and sorting of markers.
- FIM is a two-part system allowing the creation of permanently printed markers

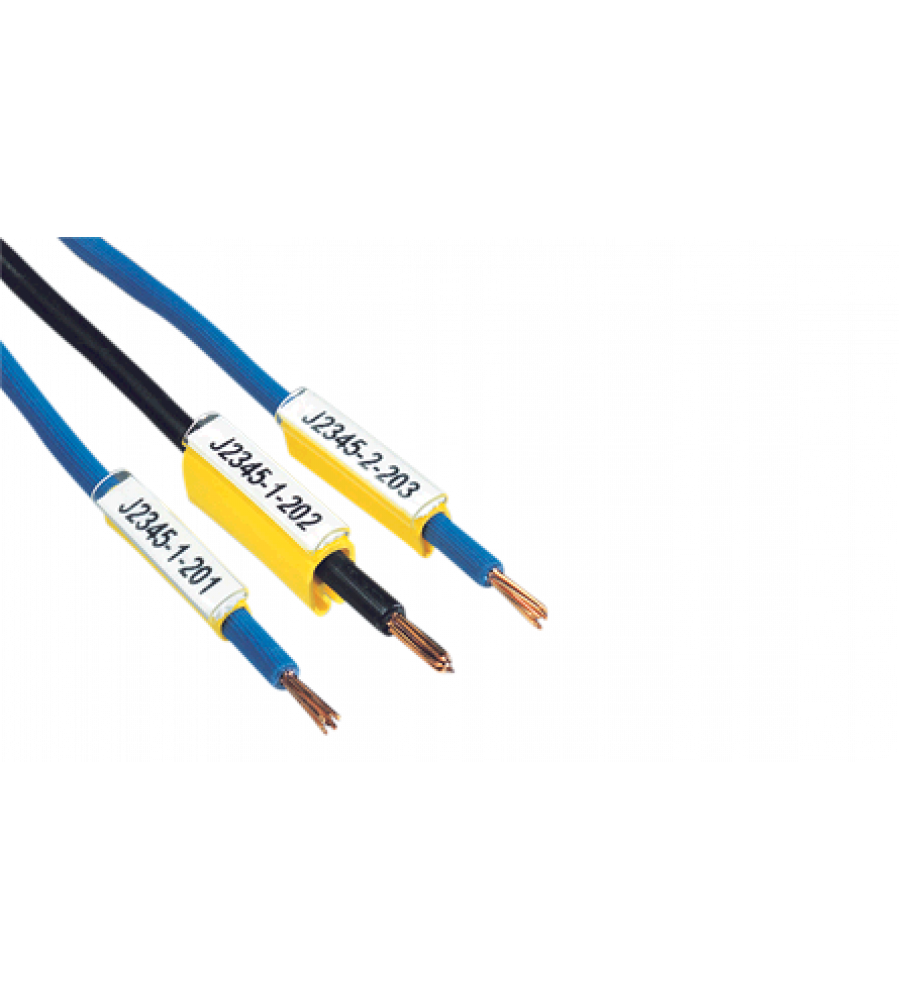

- Printed markers are inserted into clear carriers and mounted on to the wire or cable
- The printed strips can be replaced post-termination when re-labelling is required
- The clear carrier gives added protection from dust and grime.
- Carriers are available in a number of sizes to cover a wide range of cable diameters
- Markers: Polypropylene zero halogen film, 250 micron
- Carriers: PVC clear
- Resistant to water, humidity, alcohol, oil, grease and miscellaneous cleaning agents
- Applications : Panel builders, junction box, cabinet and post-termination labelling
- Operating temperature : -40ºC to +90ºC
- Easy to install "pull-through" marker guide tail
- Printed markers are pulled through the clear carrier, then "guide-tail" removed at pre-scored perforation point
